45,000 BTU/h
250 - 1,200 ft²
1.1 ft³
1.5 g/h
17" (16" recommended)

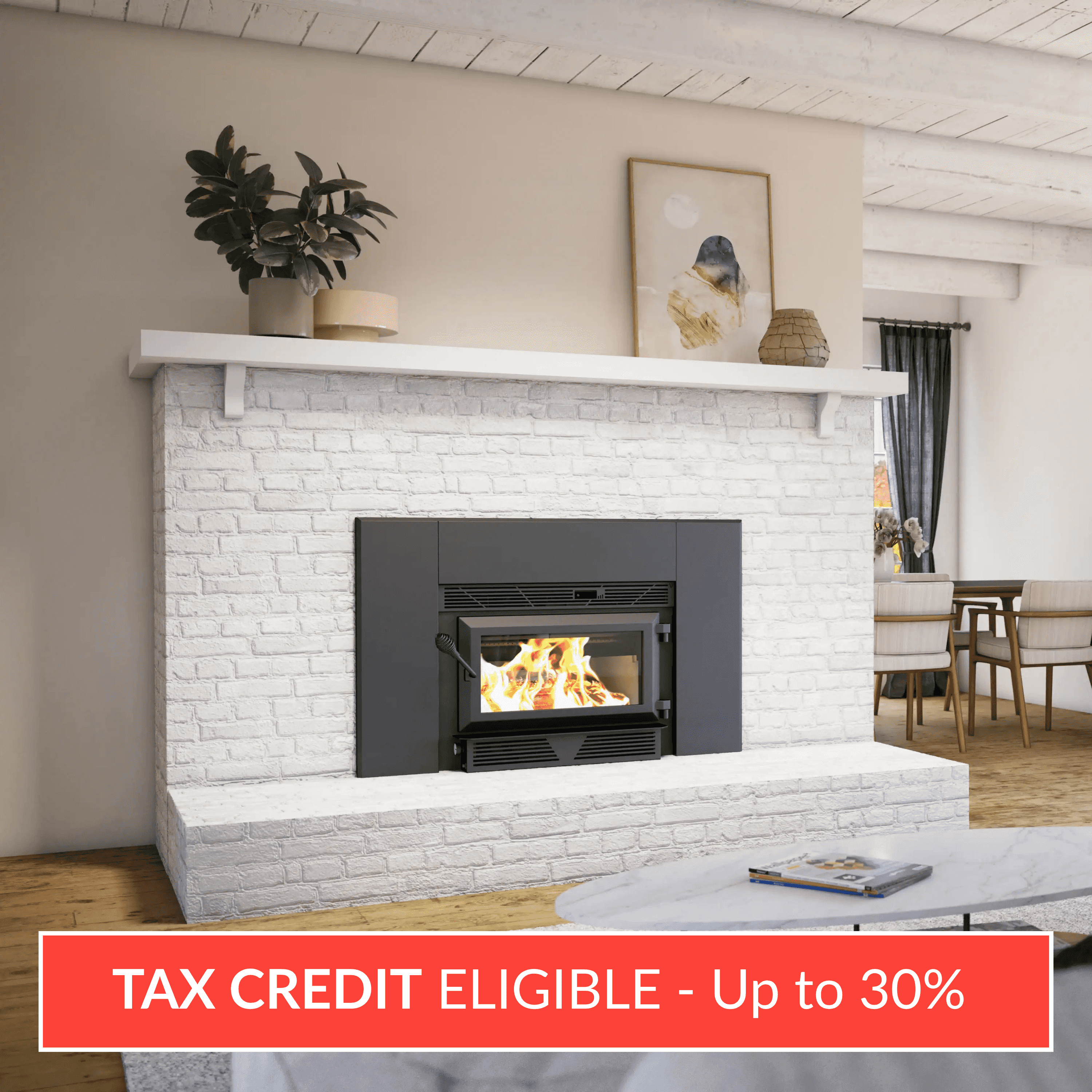

VB00024Wood Inserts VentisHEI90

▪Small-sized wood insert suitable for tighter spaces
▪Tapered shape (top and sides) that simplifies installation in small masonry hearths
▪EPA certified at only 1.5 g/h
▪Best-in-class performance with an efficiency rate of 75%
▪Solidity and manufacturing quality
▪C-Cast heat shield added to the firestop
▪Non-catalytic combustion technology
▪Installation authorized on the Island of Montreal
▪Cast iron door
▪90 CFM blower with right/left powercord

Required option: regular faceplate (VBA1545)

Tax Credit QualificationSee full specificationsSee the manuals
Options
Specifications
Manuals
Replacement parts
26" X 42" REGULAR FACEPLATE
VBA1545
REQUIRED OPTION
FIRESCREEN DOOR
AC01213
5"Ø FRESH AIR INTAKE KIT
AC01298
5"Ø FRESH AIR INTAKE REGISTER WITH AIRTIGHT DAMPER
4' INSULATED FLEX PIPE FOR 5"Ø FRESH AIR INTAKE
AC02090
HOOK UP LINER SYSTEM
