ME300

VB00001

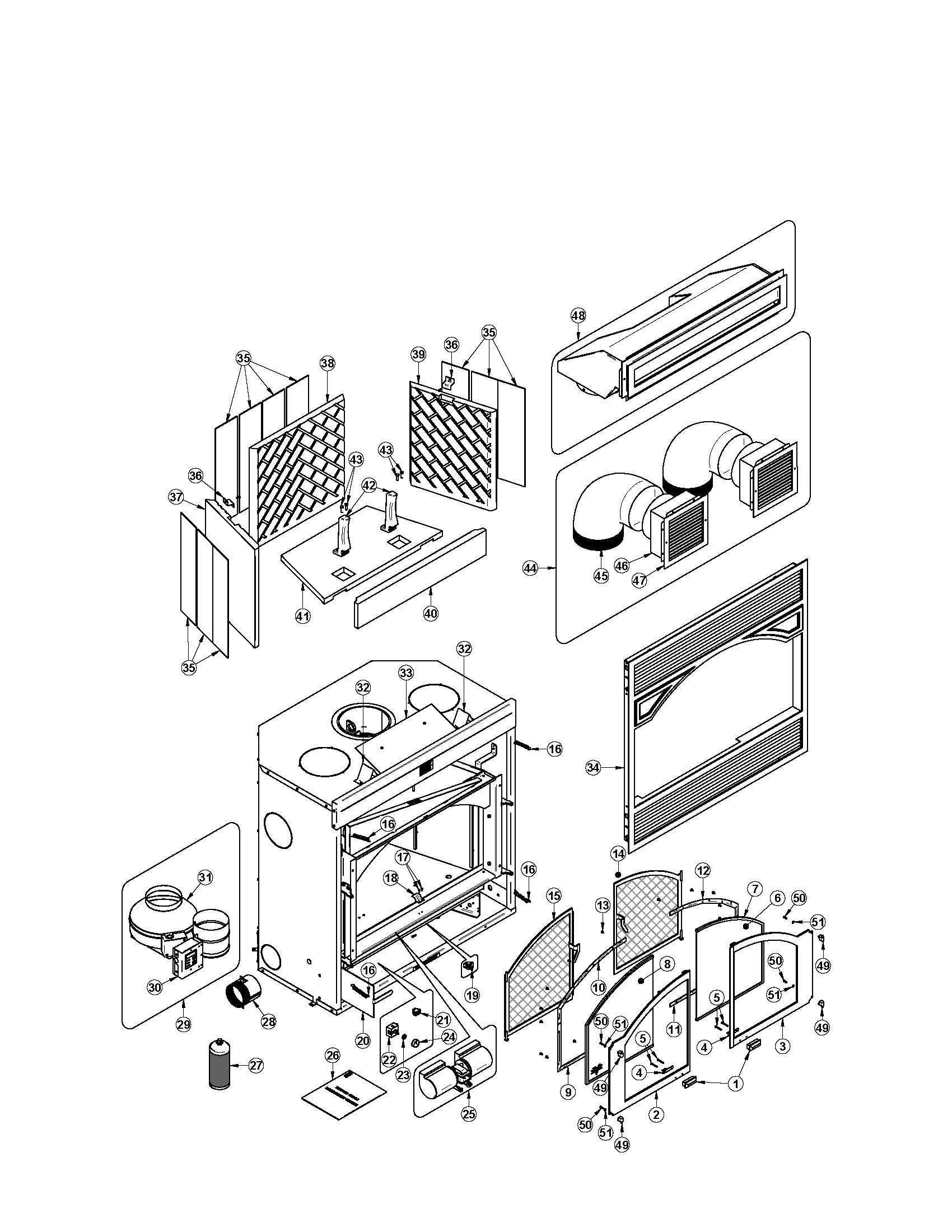

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)Msrp per item*Shipping date
130564
BLACK WOODEN DOOR HANDLE
2 / appliance (sold individually)
USD $20.00
2SE59760
LEFT DOOR FRAME ASSEMBLY
1 / appliance (sold individually)
USD $325.00
3SE59761
RIGHT DOOR FRAME ASSEMBLY
1 / appliance (sold individually)
USD $325.00
4PL59917
DOOR RETAINER
2 / appliance (sold individually)
USD $5.00
530244
WOOD SCREW #8 X 3/4" PAN HEAD
4 / appliance (sold individually)
USD $1.00
6SE59882
RIGHT REPLACEMENT GLASS WITH GASKET 15 1/8'' X 18 1/32''
1 / appliance (sold individually)
USD $375.00
7AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
2 / appliance (sold individually)
USD $15.00
8SE59881
LEFT REPLACEMENT GLASS WITH GASKET 15 5/16'' X 18 1/32''
2 / appliance (sold individually)
USD $375.00
9PL59913
BOTTOM LEFT GLASS RETAINER
1 / appliance (sold individually)
USD $40.00
10PL59939
TOP LEFT GLASS RETAINER
1 / appliance (sold individually)
USD $35.00
11PL59912
BOTTOM RIGHT GLASS RETAINER
1 / appliance (sold individually)
USD $35.00
12PL59940
TOP RIGHT GLASS RETAINER
1 / appliance (sold individually)
USD $35.00
1330124
SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC
16 / appliance (sold individually)
USD $1.00
14SE59876
RIGHT FIRESCREEN DOOR
1 / appliance (sold individually)
USD $125.00
15SE59877
LEFT FIRESCREEN DOOR
1 / appliance (sold individually)
USD $135.00
1630472
SPRING 1/2" OØ x 3"L
4 / appliance (sold individually)
USD $10.00
1730158
BLACK METAL SCREW #8 X 1/2" PAN QUADREX TYPE "A"
2 / appliance (sold individually)
USD $1.00
18PL59788
SCREEN DOOR CLIP
1 / appliance (sold individually)
USD $10.00
19VA1150
THERMODISC F120-10F
1 / appliance (sold individually)
USD $60.00
20PL59935
AIR CONTROL LEVER
1 / appliance (sold individually)
USD $25.00
2144091
ROCKER SWITCH 2 POSITION MSR-8
1 / appliance (sold individually)
USD $10.00
2244080
RHEOSTAT WITHOUT NUT (AC-11)
1 / appliance (sold individually)
USD $55.00
2344087
RHEOSTAT NUT
1 / appliance (sold individually)
USD $5.00
2444085
RHEOSTAT KNOB
1 / appliance (sold individually)
USD $8.00
2544122
DOUBLE CAGE BLOWER 176 CFM (CLASS H)
1 / appliance (sold individually)
USD $250.00
2699998
DISCONTINUED
1 / appliance (sold individually)
--
27AC05959
METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL
1 / appliance (sold individually)
USD $25.00
28PL59765
4'' ADAPTER FOR FRESH AIR INTAKE KIT
1 / appliance (sold individually)
USD $50.00
29AC01374
FORCED AIR KIT
1 / appliance (sold individually)
USD $960.00
3044125
FORCED AIR DISTRIBUTION KIT PC CARD
1 / appliance (sold individually)
USD $295.00
3144142
BLOWER 6" 300 CFM
1 / appliance (sold individually)
USD $695.00
32PL60266
LONG TOP STANDOFF
2 / appliance (sold individually)
USD $5.00
33PL59821
TOP HEAT SHEILD
1 / appliance (sold individually)
USD $15.00
34VBA1520
BLACK TRADITIONAL FACEPLATE
1 / appliance (sold individually)
USD $700.00
3521394
SIDE AND REAR REFRACTORY PANEL INSULATION
10 / appliance (sold individually)
USD $6.00
36PL59856
REFRACTORY PANEL RETAINER
2 / appliance (sold individually)
USD $10.00
3722166
LEFT REFRACTORY PANEL
1 / appliance (sold individually)
USD $160.00
3822165
BACK REFRACTORY PANEL
1 / appliance (sold individually)
USD $155.00
3922167
RIGHT REFRACTORY PANEL
1 / appliance (sold individually)
USD $160.00
4022161
FRONT REFRACTORY PANEL
1 / appliance (sold individually)
USD $95.00
4122160
BOTTOM REFRACTORY PANEL
1 / appliance (sold individually)
USD $125.00
42VA7070
PAINTED CAST IRON ANDIRON
2 / appliance (sold individually)
USD $80.00
4330109
BOLT HEX 1/4 - 20 x 1"
4 / appliance (sold individually)
USD $2.00
44AC01375
TRADITIONAL HOT AIR GRAVITY KIT
1 / appliance (sold individually)
USD $400.00
4549066
90° X 8" 26Ga. GALVANISED ELBOW
2 / appliance (sold individually)
USD $40.00
4630640
GALVANISED BOX FOR HOT AIR GRAVITY KIT 8"
2 / appliance (sold individually)
USD $80.00
4730540
HOT AIR GRAVITY KIT GRILL
2 / appliance (sold individually)
USD $75.00
48AC01376
MODERN HOT AIR GRAVITY KIT
1 / appliance (sold individually)
USD $350.00
4930566
DOOR HINGE
4 / appliance (sold individually)
USD $15.00
5030022
MECHANICAL SCREW 10-32 x 1/2" FLAT HEAD
4 / appliance (sold individually)
USD $1.00
5130192
STAR RING #10 x .410-.395" OD - .025-.020" THICK
4 / appliance (sold individually)
USD $1.00

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.

* Contact your local dealer for complete details regarding prices, products, services etc. Prices displayed do not include taxes, freight, installation charges, duties, and/or customs fees if applicable.
