HEI240

VB00012

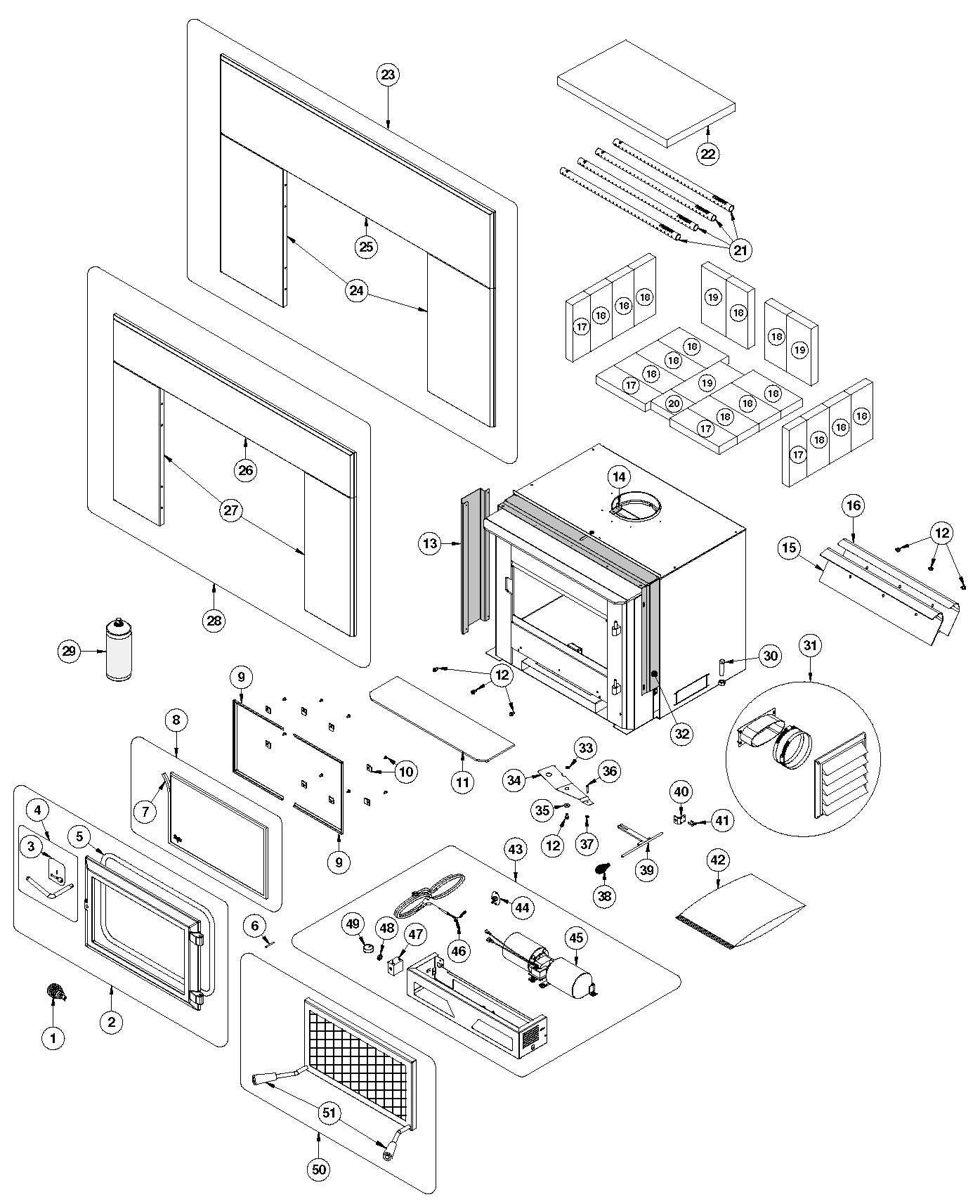

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)Msrp per item*Shipping date
1AC07868
1/2" BLACK COIL HANDLE
1 / appliance (sold individually)
USD $9.00
2SE24335
VENTIS SERIAL 2.3 CAST IRON DOOR
1 / appliance (sold individually)
USD $225.00
3AC09185
DOOR LATCH KIT
1 / appliance (sold individually)
--
4SE70697
REPLACEMENT HANDLE WITH LATCH KIT
1 / appliance (sold individually)
USD $40.00
5AC06500
SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
--
630101
SPRING TENSION PIN 5/32"Ø x 1 1/2"L
1 / appliance (sold individually)
--
7AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
--
8SE65323
VENTIS 2.3 GLASS 17 7/8''W X 11 1/4''H
1 / appliance (sold individually)
USD $175.00
9PL65314
RIGHT GLASS FRAME
2 / appliance (sold individually)
USD $10.00
10SE53585
GLASS RETAINER KIT WITH SCREWS (12 UNITS)
1 / appliance (sold individually)
USD $15.00
11SE65058
ASH TRAY ASSEMBLY
1 / appliance (sold individually)
USD $90.00
1230060
THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC
7 / appliance (sold individually)
--
13PL65061
RIGHT OR LEFT DECORATIVE SIDE PANEL
2 / appliance (sold individually)
USD $35.00
14PL34052
LINER FIXATION BRACKET
3 / appliance (sold individually)
--
1521387
TOP AIR DEFLECTOR INSULATION
1 / appliance (sold individually)
--
16PL65505
TOP AIR DEFLECTOR PROTECTOR
1 / appliance (sold individually)
--
1729007
3 1/4" x 9" x 1 1/4" REFRACTORY BRICK
4 / appliance (sold individually)
USD $8.00
1829015
4" x 9" x 1 1/4" REFRACTORY BRICK
14 / appliance (sold individually)
--
1929010
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK
3 / appliance (sold individually)
--
20PL36236
4 1/2" x 3 3/4" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
USD $10.00
21PL65514
SECONDARY AIR TUBE
4 / appliance (sold individually)
USD $45.00
2221388
20" x 12 1/2" x 1 1/4" VERMICULITE BAFFLE
1 / appliance (sold individually)
--
23VBA1551
34" X 50" LARGE FACEPLATE
1 / appliance (sold individually)
USD $250.00
24PL65321
SIDE FACEPLATE 32 X 50
2 / appliance (sold individually)
USD $50.00
25PL65320
TOP FACEPLATE 32 X 50
1 / appliance (sold individually)
USD $50.00
26PL65327
TOP FACEPLATE 29 X 44
1 / appliance (sold individually)
USD $40.00
27PL65328
FACEPLATE SIDE 29 X 44
2 / appliance (sold individually)
USD $40.00
28VBA1550
29" X 44" REGULAR FACEPLATE
1 / appliance (sold individually)
USD $200.00
29AC05959
METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL
1 / appliance (sold individually)
USD $25.00
3030337
SQUARE HEAD SET SCREW 1/2-13 x 1-3/4"
2 / appliance (sold individually)
--
31AC01298
5"Ø FRESH AIR INTAKE KIT
1 / appliance (sold individually)
--
32PL53869
FACEPLATE EXTENSION
1 / appliance (sold individually)
USD $55.00
3330187
STAINLESS WASHER ID 17/64" x OD 1/2"
1 / appliance (sold individually)
--
34PL65579
AIR CONTROL DAMPER
1 / appliance (sold individually)
USD $10.00
3530206
ZINC WASHER 5/16"ID x 3/4"OD
1 / appliance (sold individually)
--
3630064
3/16" x 1" CLEVIS PIN
1 / appliance (sold individually)
--
3730059
5/32" ID PUSHNUT
2 / appliance (sold individually)
--
38AC07866
1/4" BLACK COIL HANDLE
1 / appliance (sold individually)
USD $9.00
39SE65559
AIR CONTROL ROD ASSEMBLY
1 / appliance (sold individually)
USD $15.00
40PL65562
AIR CONTROL DAMPER GUIDE
1 / appliance (sold individually)
--
4130160
METAL SCREW #8 x 3/4" QUADREX SELF TAPPING TEK
2 / appliance (sold individually)
--
42SE46163
VB00012 INSTRUCTIONS MANUAL KIT
1 / appliance (sold individually)
USD $30.00
43SE65318
BLOWER ASSEMBLY
1 / appliance (sold individually)
USD $395.00
4444028
CERAMIC THERMODISC F110-20F
1 / appliance (sold individually)
USD $20.00
4544089
DOUBLE CAGE BLOWER 144 CFM 115V - 60Hz - 1.1A
1 / appliance (sold individually)
USD $225.00
4660013
POWER CORD 96" x 18-3
1 / appliance (sold individually)
--
4744080
RHEOSTAT WITHOUT NUT
1 / appliance (sold individually)
--
4844087
RHEOSTAT NUT
1 / appliance (sold individually)
--
4944085
RHEOSTAT KNOB
2 / appliance (sold individually)
--
50AC01315
RIGID FIRESCREEN
1 / appliance (sold individually)
USD $180.00
5130898
ROUND WOODEN BLACK HANDLE
2 / appliance (sold individually)
USD $15.00

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
